IPC/WHMA-A-620 Hands-On Cable Parts Kit

IPC/WHMA-A-620 Hands-On Cable Parts Kit

SKU WHA822-E01Price $320.00
  • More Details
  • Related Items

IPC/WHMA-A-620 Hands-On Cable Parts Kit More Details

Contact us for shipping estimate - MADE ON DEMAND

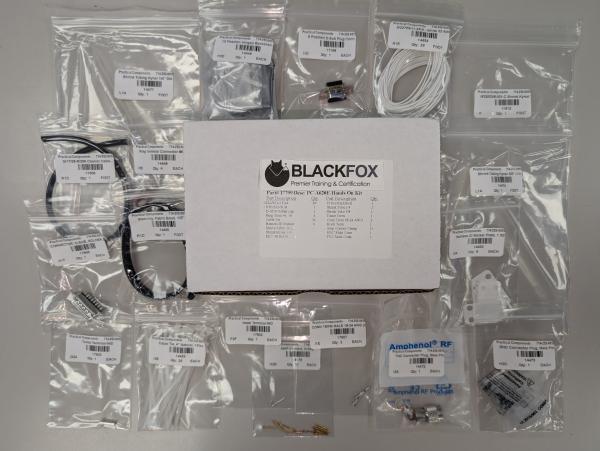

WHA822-E01 The 620 Hands-On Cable Kit includes all parts needed to train and practice wire and cable harness building skills. Meets IPC/WHMA-A-620 revision E Hands-On Module requirements for hands-on classroom certification.

This kit enables hands on training in the following areas of wire harness assembly: Cable and wire dimensioning, tolerances and preparation, Crimp Terminations, Soldered terminations, Splices, Connectorization, Coaxial cable assembly, and Wire bundle securing.

Each kit comes individually packaged with all components bagged and tagged for easy identification.

Perfect for classroom settings. Tools and Manuals sold separately.



WHA822-E01 Parts List:
Part Description Qty Per Kit
22 AWG Stranded Wire 28'
D-Sub Connector 9 pos 1
D-Sub Connector 15 pos, Cup 1
Contact Pin 24-20 AWG Crimp 11
Ring Lug #6 Crimp 4
Turret Terminal 1
Hook Terminal 1
Backshell and Hardware 1
Open Barrel Contact 2
Coax Cable 10"
BNC Coax Connector 1
TNC Coax Connector 1
Cable Tie 4" 26
Marker Plate 7
Sleeving Braid 1/2" 8"
Shrink Tubing 1/8" 8"
Shrink Tubing 1/4" 8"
Shrink Tubing 3/8" 8"
Glass Cloth Tape, 1" wide, silicone PSA 1'
Solder Wire, .020", ROL0 Rosin core 3'
Kester 185 liquid soldering flux, ROL0 2ml

Related Items

620-Space-Recert-Cable-Kit
IPC/WHMA-A-620 Space Addendum RECERT Kit

MADE ON DEMAND - EXTENDED LEAD TIMES MAY APPLY The WHA822-E03 Space Recert Cable Kit includes all parts needed to recertify a student in the IPC/WHMA-A-620 Space Addendum.

SKU WHA822-E03Price $360.00
IPC-A-620Dgood
IPC/WHMA-A-620D Requirements and Acceptance for Cable and Wire Harness Assemblies
Hard copy manual. Revision D. IPC/WHMA-A-620D remains the only industry-consensus standard for Requirements and Acceptance of Cable and Wire Harness Assemblies.
SKU A620-STD-0-P-0-EN-DPrice $353.00
IPC-A-620E
IPC/WHMA-A-620E Requirements and Acceptance for Cable and Wire Harness Assemblies
Hard copy manual. NEW revision E. IPC/WHMA-A-620E remains the only industry-consensus standard for Requirements and Acceptance of Cable and Wire Harness Assemblies.
SKU A620-STD-0-P-0-EN-EPrice $353.00
