7711/21C Advanced Rework/Repair Certification Kit - Lead-Free More Details

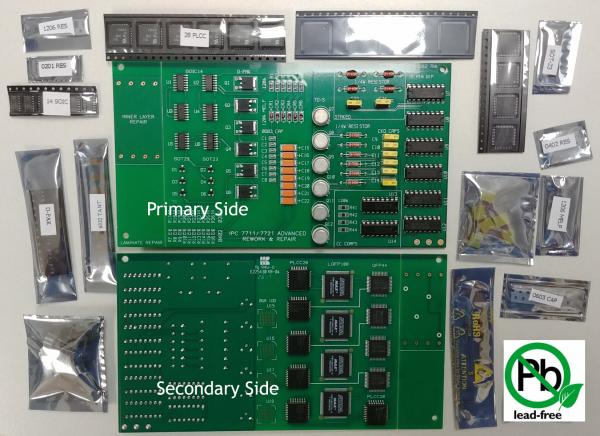

The 7711/21 Revision C Lead-Free Advanced Rework/Repair Certification Kit is ideal for rework/repair training or to evaluate current rework procedures. This kit contains 1 fully-populated lead-free soldered board, and enough components to repopulate the board after the removal of components. New at this revision: PCB ground plane for more realistic through-hole rework; conformal coated section over SMT & TH components; several staked SMT & TH components; a variety of pads, traces and plated through holes to demonstrate circuit and laminate repair. Tin/Lead option also available!
This kit conforms to the IPC 7711/7721 Revision C standards for rework training. It contains a wide range of components from Through-Hole to Chip Scale. Each kit is conveniently packaged with all components individually bagged and labeled for easy identification. Forget looking for scrap boards to train on!
In stock and ready to ship, this kit is perfect for classroom settings. Meets IPC 7711/7721 Rev C training requirements.
| 7711/21C Advanced Rework/Repair Kit | |
|---|---|
| Part Name | Quantity Per Kit |
| 7711/21 Rev C Lead-Free PCBA-Assembled | 1 |
| LQFP100-14mm-.5mm-2.0 | 4 |
| LQFP44-10mm-.8mm-3.2 | 4 |
| PLCC28T | 6 |
| SOT23 | 6 |
| 0201SMR | 10 |
| 0402SMR | 10 |
| 0603SMR | 8 |
| 1206SMR | 6 |
| SOD80-Melf | 6 |
| Tantalum Cap | 8 |
| SO14GT-3.8mm | 6 |
| DPAK | 6 |
| 1/4-W Axial Resistor | 6 |
| CK05 | 6 |
| CK05 Spacer | 6 |
| DIP16 | 6 |
| TO5 | 6 |
| TO5/18 Spacer | 6 |
| Kit Order Number: | 7711/21C Advanced Rework/Repair Certification Kit - Lead Free |
