The PC016 Lead-Free Mixed Technology Kit is an effective and economical way to train and evaluate
students and employees. This kit contains a variety of standard Surface Mount and Through-Hole
components with traces to simulate real world situations.
Each kit comes individually boxed with all components bagged and labeled for easy
identification. Conforms to IPC J-STD-001 standard for soldering and is ideal for use during an
IPC J-STD-001 Certification Class.
| PC016 Hand Soldering Kit |
| Part Description |
Quantity Per Kit |

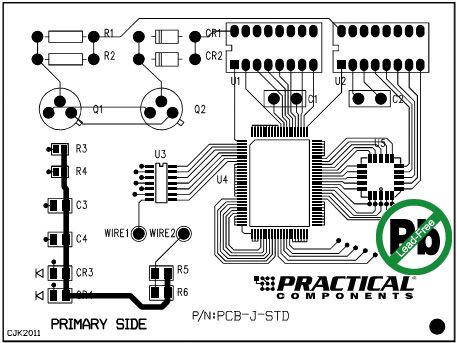

| PCB016 ImAg FINISH |
2 |
| 1/4-W-AR |
4 |
| TO5 |
4 |
| TO5 Spacer |
4 |
| DO35 |
4 |
| CK05 |
4 |
| CK05 Spacer |
4 |
| DIP16 |
4 |
| 0805SMR |
4 |
| 1206SMR |
4 |
| 1206SMC |
4 |
| 1206 Melf |
4 |
| SO14GT-3.8mm |
2 |
| QFP100-14x20mm-.65mm-3.2 |
2 |
| PLCC20 |
2 |
| Turret Terminals |
4 |
| Bifurcated Terminals |
4 |
| Pierced Terminals |
4 |
| Hook Terminals |
4 |
| Gold Cup Terminals |
4 |
| 20 Gauge Wire |
3 ft. |
| 22 Gauge Wire |
3 ft. |
| 26 Gauge Wire |
3 ft. |
| Kit Order Number |
PC016-LF |
