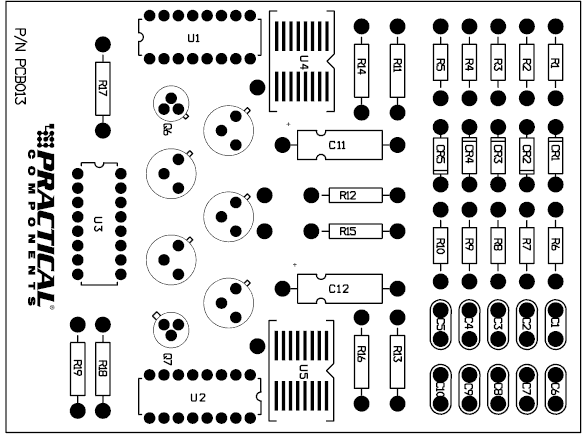

pcb013-through-hole-solder

PC013 Through-Hole Training Kits - PCB & Parts

SKU PC013-KPrice $49.00
  • More Details
  • Related Items:

PC013 Through-Hole Training Kits - PCB & Parts More Details

The PC013 Hand Solder Practice Kit is an effective way to evaluate or train employees and students in through-hole and terminal soldering. This versatile board comes with a variety of through-hole components, terminals and wires and each kit is conveniently boxed with components individually bagged and labeled for easy identification.

Always in stock and ready for shipment, this kit is ideal for classroom settings.



PC013 Complete Through-Hole Solder Training Kit
Part Number Qty Per Kit
PCB013 2
Turret Terminal 15
Bifurcated Terminal 15
Hook Terminal 15
Pierced Terminal 15
Cup Terminal 15
DO35 10
AE-5x12 4
CK05 20
CK05 Spacer 20
1/4-W-AR 20
1/2-W-AR 18
DIP16 6
TO5 10
TO18 4
TO5/18 Spacer 14
SO16GT-5.6mm 4
20 Gauge Wire 10'
22 Gauge Wire 10'
26 Gauge Wire 10'
Kit Order Number: PC013-K
